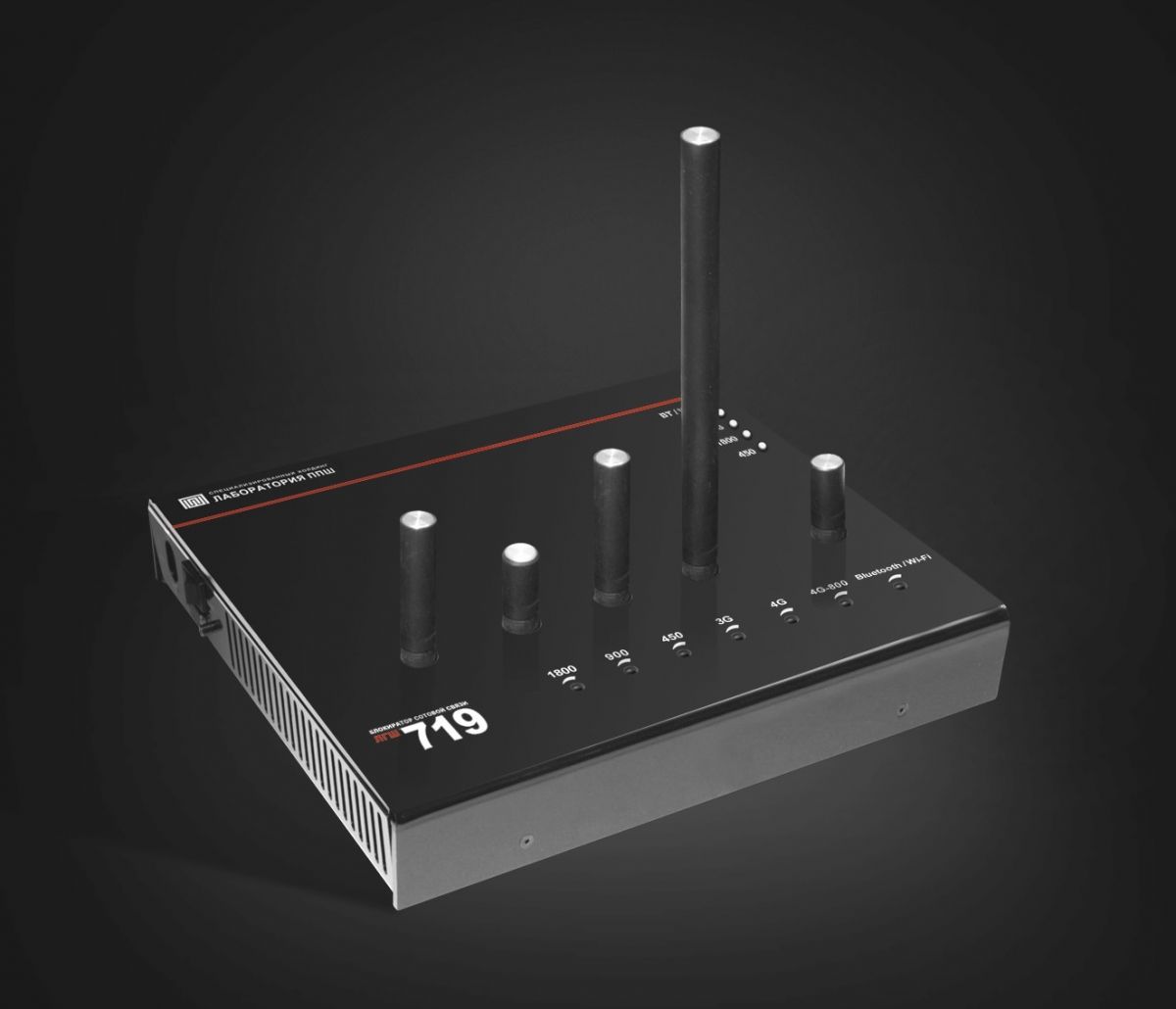

LGSH-719-cellular communication blocker
Blockers wireless is designed to block devices elevation information in the standards of cellular networks and the standards for Bluetooth and WiFi.
DESCRIPTION
The principle of operation is to generate noise interference in the required frequency range. It is possible stepless power jamming signal in each band, which allows you to block wireless communication standards within the protected premises.
Today, the device is the flagship among the LGSH series cellular communication blockers and combines all the features of the LGSH-701, LGSH-712, LGSH-713, LGSH-704, and LGSH-705 products.
LGSH-719 is easy to install and operate, does not require special skills. A distinctive feature is the presence of 7 independent power adjustment channels for each frequency range, which allows you to create blocking zones based on your requirements.
The LGSH - 719 product in the M modification instead of the IMT-MC-450 standard suppresses the operation of networks of the AMPS/N-AMPS/D-AMPS-800/CDMA-800 standard.
TECHNICAL SPECIFICATIONS:
|
Operating frequency range: |
|
|
standard IMT-MC-450 (CDMA2000 1x) |
at least 462.5 ... 467.475 MHz |
|
LTE-800 (4G) |
at least 791...821 MHz |
|
GSM900 standard |
at least 925 ... 960 MHz |
|
DSC/GSM1800 standard, (DECT1800) |
at least 1805 ... 1900 MHz |
|
IMT-2000/UMTS (3G) standard |
not less than 2010 ... 2025 and 2125 ... 2170 MHz |
|
LTE and WiMAX (4G) |
at least 2560 ... 2700 MHz |
|
standard Bluetooth, WiFi |
at least 2400 ... 2483.5 MHz |
|
Maximum output power on the antenna connector: |
|
|
standard IMT-MC-450 (CDMA2000 1x) |
at least 33 dBm |
|
GSM900 standard |
at least 33 dBm |
|
DSC/GSM1800 standard, (DECT1800) |
at least 30 dBm |
|
IMT-2000/UMTS (3G) standard |
at least 30 dBm |
|
LTE-800, LTE-2600 and WiMAX (4G) |
at least 28 dBm |
|
standard Bluetooth, WiFi |
at least 27 dBm |
|
The range of output power adjustment on the antenna connector to each output smoothly and independently |
at least 13 dB |
|
Effective suppression radius |
1 … 50 m |
|
The gain is included in the supplied antenna devices |
0 dBi |
|
Power consumed from the network |
no more than 30 VA |
|
Overall dimensions |
no more than 368x265x60 mm |
|
Weight |
not more than 2.5 kg |
|
Supply voltage |
100 … 240 V |
|
Mode of operation |
round the clock |
|
Ambient air temperature |
from 1 to 40°C |
|
Relative humidity of the air |
no more than 80% at 25°C |
|
Atmospheric pressure |
630-800 mmHg |
|
Average time to failure |
at least 10000 hours |
|
Average service life |
10 years |
