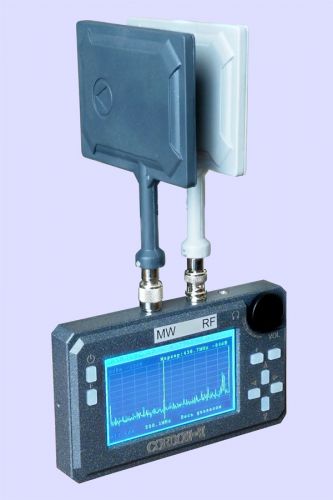

CORDON-4-Electromagnetic field analyzer
detects analog and digital embedded devices in the range of 0.1-12000 MHz. Including communication devices operating in the frequency bands of the GSM900/1800 standards; AMPS/DAMPS, CDMA One; CDMA2000, UMTS, DECT; IEEE802.15.1 (Bluetooth); IEEE802.11a (Wi-Fi 5GHz); IEEE802.11b; IEEE802.11g (Wi-Fi 2.4 GHz); IEEE802.15.4 (ZigBee) and LTE (4G).
PURPOSE:
The KORDON-4 electromagnetic field analyzer is designed to detect and localize low-power sources of electromagnetic radiation.
The analyzer is based on an integral method of measuring the level of the electromagnetic field at its location.
The product allows not only to detect the radiation of a radio transmitter secretly installed in a dedicated room, but also to measure the frequency of its signal, as well as to evaluate the power of electromagnetic radiation at the receiving point.
The product detects and localizes embedded devices and communication devices operating in the frequency ranges of the following standards: GSM900/1800; AMPS/DAMPS, CDMA One; CDMA2000, UMTS, DECT; IEEE802.15.1 (Bluetooth); IEEE802.11a (Wi-Fi 5GHz); IEEE802.11b; IEEE802.11g (Wi-Fi 2.4 GHz); IEEE802.15.4 (ZigBee) and LTE (4G).
The field analyzer "Cordon-4" allows you to evaluate the level of radiation power by these devices.
WORK:
The electromagnetic field analyzer "CORDON-4" has two modes of operation - "search mode" and "acoustic tie" mode.
• In the search mode, the frequency and level of electromagnetic radiation are measured.
• In the "acoustic tie" mode, it is possible to search for radio transmitters using the acoustic feedback method.
The device is equipped with a liquid crystal display, which displays the operating modes of the device, the level and frequency of the received signal, as well as time and spectral diagrams of the input signal.

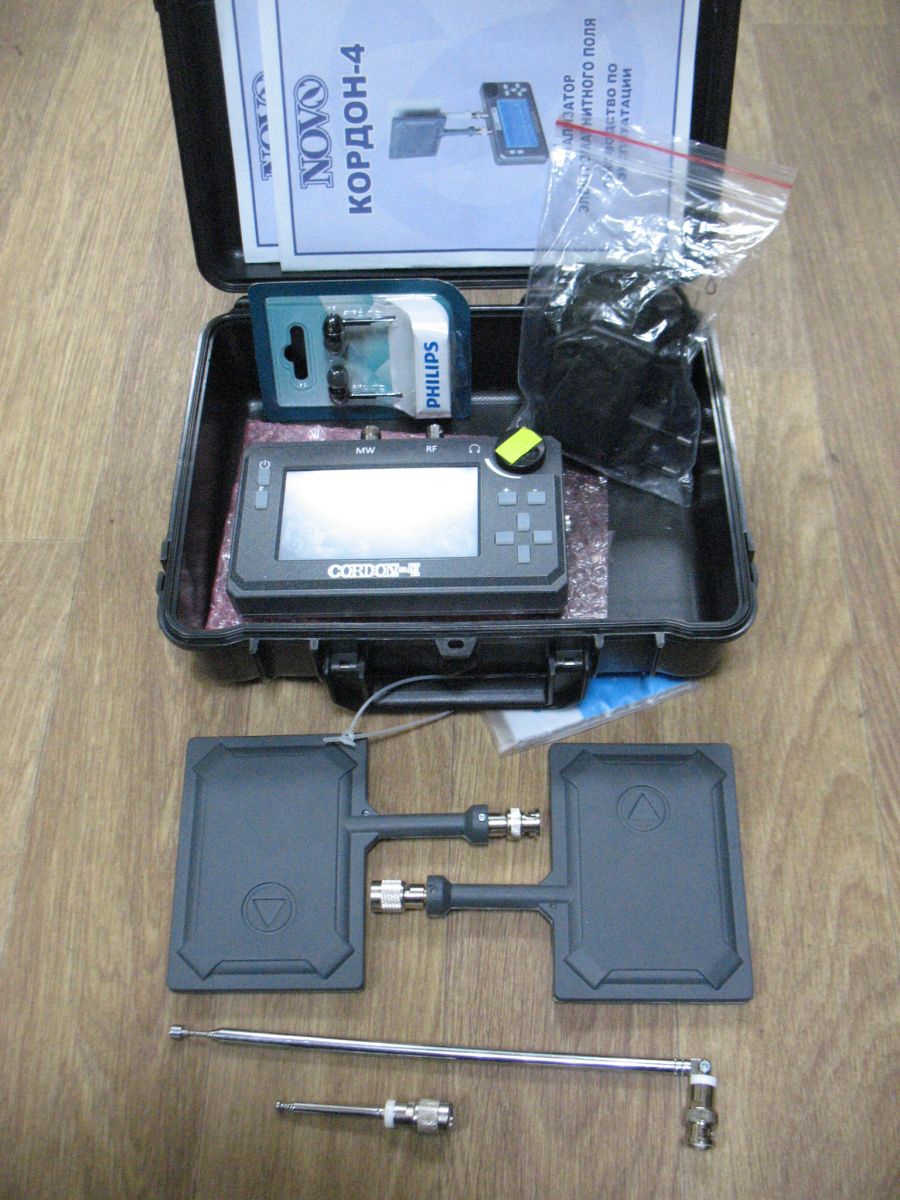

SCOPE OF DELIVERY:
• The unit analyzer
• Telescopic antenna for the frequency range of 0.1 - 920 MHz
• Telescopic antenna for the frequency range 300 ÷ 12000 MHz
• Head phones
TECHNICAL SPECIFICATIONS:
|
Operating frequency range, MHz: |
0,1÷12000 |
|
Dynamic range, dB, not less: |
|
|
0,1 ÷ 12000 MHz |
70 |
|
120 ÷ 700 MHz |
70 |
|
700 ÷ 6400 MHz |
55 |
|
6400÷ 12000 |
45 |
|
Input sensitivity, mV, not worse: |
|
|
0,1 ÷ 75 MHz |
0.30 |
|
75 ÷ 400 MHz |
0.30 |
|
700 ÷ 6400 MHz |
1.25 |
|
6400÷ 12000 |
5.0 |
|
The sensitivity of input at detection of mobile communications, mV, not worse |
2,0 |
|
Built-in attenuator, dB |
0;10;20;30 |
|
Power supply voltage (4 "AA" batteries), V |
6,0 |
|
Consumption current, mA, max: |
|
|
in the search mode |
300 |
|
in the "acoustic tie" mode" |
500 |
|
Dimensions without antennas, mm |
130 x 34 x 87 |
|
Main unit weight, kg |
0,32 |
